Windows Kernel Exploitation With HEVD on x64 system

I Have been and still learning Kernel exploitation , and i found a very interesting Kernel driver HackSys Extreme Vulnerable Windows Driver filled with different bugs to help people who like to learn kernel exploitation a deep and easy way to understand that .

In this post we will focus on kernel stack overflow using C++ to write our exploit

ok so first things first we will devide this tutorial in 3 parts :

1- setting up our environment .

2- Discovering the bug and bsod the system .

3 - Writing the exploit and explotation :) .

PS: i’m still learning and there a big chance that i will make some mistakes or misunderstand some thing so don’t hesitate to point that if it is the case ;) .

Setting up our environment

For this tutorial i’m using a x64 Windows 7 , running on VMWARE and the x64 HEVD

Installing the Vulnerable driver

there is two way either compiling it or use the allready compiled one , i will chose the easy way (Compiled version)

you can download that from there github repo https://github.com/hacksysteam/HackSysExtremeVulnerableDriver/releases/download/v1.20/HEVD.1.20.zip

and we will be using OSR Driver Loaderto install HackSys Extreme Vulnerable Driver by browsing for the HEVD.sys and clicking on Regsiter Service .

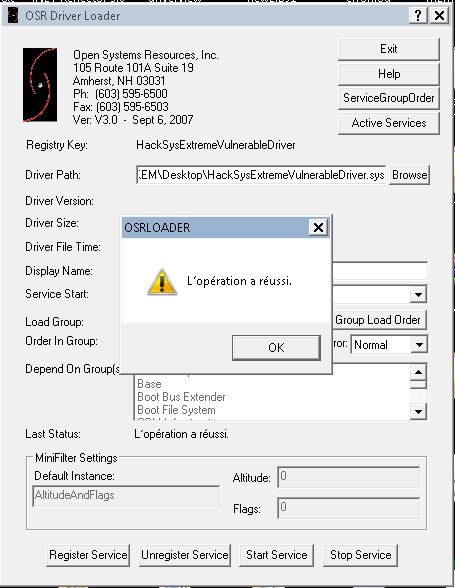

osr loader.JPG

you’ll see a “The Operation completed successfully” (Sorry mine it’s in french ;p).

Now it’s time to setup the debugging environment , since this is a kernel exploitation the debugger must run remotely , for that we will be using the VirtualKD tool to help us just doing that , grab it from this link http://virtualkd.sysprogs.org/download/

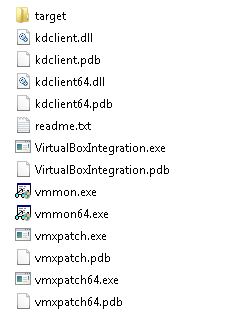

after extraction in the VM you will have this

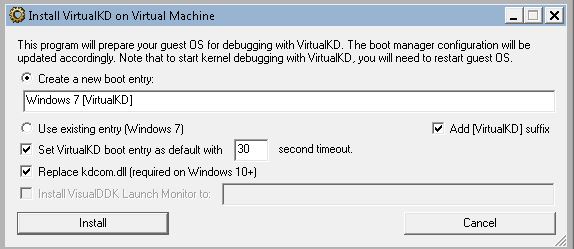

double click on the target folder then click on vminstall.exe you’ll get


click on install

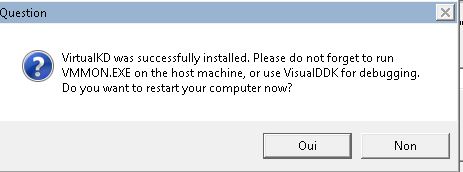

cool everything seems fine , now before clicking on yes to restart , back to our host machine (NOT THE VM)

extract the same VirtualKD on the host machine click on vmmon64.exe restart the VM and you’ll get


make sure to check start debugger automatically or use Run debugger , then run the following command on Windbg to show up the HEVD driver debugging output

ed nt!Kd_DEFAULT_MASK 8

and also this to verify that HEVD has been installed

lm


if not type > g in windbg

repeat the first step to register the driver and click also on start service ,break and verify again

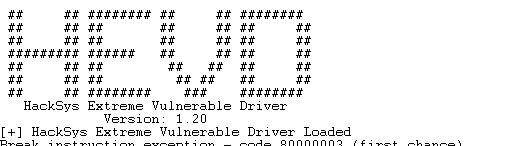

and you’ll get the follwing debugging output after starting the driver

Cool now we are ready to go to funny part :) .

Written on September 3, 2017
